IM740A Mowing type
Category：
Production of all kinds of green, cleaning construction equipment. It is mainly used for pruning, cleaning and spraying of vegetation and trees on both sides of the road and in the middle of the green belt.
Key words：
Greening comprehensive maintenance vehicle | Multi-functional machine
Product Description

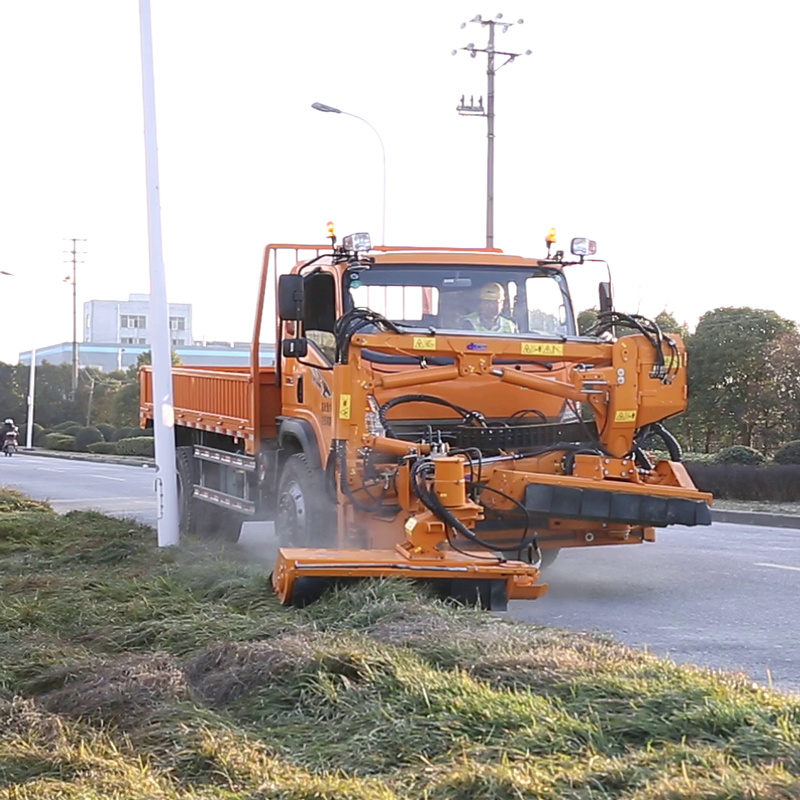

Mowing head
The mowing head is one of the multi-functional machines and tools for comprehensive greening maintenance vehicle. It is used for fragmentary pruning greening plants, weeds and shrubs on both sides of roads (national roads, provincial roads, county roads and township roads) and in the slopes. It is driven by full hydraulic pressure. The maximum cutting diameter can reach 20 mm. The cutting height can be adjusted according to different working conditions and the rotary blade is made of special wear-resistant steel, which not only ensures flexibility, but also has good wear resistance. The connection between the blade and the rotary cutter shaft can ensure good cutting. At the same time, it has good avoidance within a specific range, which greatly reduces the risk of knife breaking.
Technical parameters
|
Model |
Unit |
MT1250 |
MT1450 |
MT1850 |
|
Machine name |
- |
Mowing head |
Mowing head |
Mowing head |
|
Greening maintenance content |
- |
Fragmentary pruning roadside weeds and shrubs |
Fragmentary pruning roadside weeds and shrubs |
Fragmentary pruning roadside weeds and shrubs |
|
Overall dimension |
mm |
1400X710X450 |
1600X710X450 |
2000X710X450 |
|
Operation width |
mm |
1250 |
1450 |
1850 |
|
Maximum speed |
r/min |
3100 |
3100 |
3100 |
|
Weight |
kg |
260 |
310 |
410 |
资料整理中......
